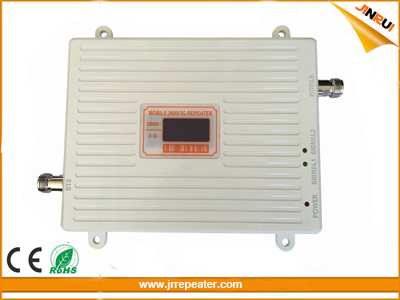

Cellular signal booster 3g 4g LTE repeater signal amplifier
Project
Item No.
Uplink
Downlink
Frequency(MHz）
WCDMA+LTE (JR-WL27)
1920/1980/2500～2570
2110-2170/2620～2690
gain(dB)
70
75
Band flatness（dB）
CDMA&GSM≤±3 DCS&PCS&WCDMA≤±6
Output Power（dBm）
23±2
27±2
ALC（dB）
31
VSWR
≤2.5
Group delay(uS）
≤1
Impedance
50ohm
Working tempreture(℃)
-25℃～+55℃
Connector type
N-Female
Working voltage
AC110V～220V to DC+5V/1A
Size（mm)
195*175*23
Packing Size(mm)
320*220*60
Net Weight（Kg）
1.5KG
MTBF
50000hours
Installation Type
Wall Installation
Waterproof Rate
IP40
for choose
Installation for LTE 4g signal repeater:
Step 1 Start by taking your phone up to the roof or other location outside to find where the signal is strongest.
Step 2 Temporarily mount the Outdoor (outside) antenna in that location. You may need to adjust and move the antenna later.
Step 3 Run coaxial cable into the building to a convenient loaction (attic, etc.) where you can also get standard power for the Signal Repeater.
Step 4 Place the Signal Repeater in that location and connect the coaxial cable to the Outdoor Side of the Signal Repeater and the Outdoor antenna.
Step 5 Mount your Indoor (inside) antenna in a productive location. You may need to adjust or move the antenna later. More notes on Indoor antennas and patterns here.
Step 6 Connect coaxial cable between the Indoor antenna and the Signal Repeater output port.
Step 7 Power up the system and check for signal inside the building. If needed, tune system by moving and or pointing the Outdoor and Indoor antennas until they get the most signal possible.
Step 8 Secure all antennas and cables, securely mount the Signal repeater and clean up the installation.
Of course there are still a few more things to consider but in general, this is the basic procedure. For more information, please contact us.
Technique supporting for LTE 4g signal repeater:
1) If still no signal receipt after activated repeater, please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70DBM.
2) If can not call out, please adjust the direction of outdoor antenna.
3) If strength is not steady, please check if outdoor & indoor antennas are too close. Please ensure the outdoor and indoor antennas have distance of 10 meters at least, with a wall between and not in a same horizontal line.
To use this product to enlarge your signal, the outdoor signal shall be as good as possible. The product will not work well if our outdoor signal is not good or bad.
Noted for LTE 4g signal repeater:
The distance between the outdoor antenna and the amplifier is not more than 30 meters
The outdoor Antenna not close to a large antenna, high-voltage lines, transformers, or metal mesh, etc.
The distance between the indoor antenna and the amplifier is not more than 40 meters
The indoor antennas do not close to the wall as far as possible in order to increase the coverage area
The indoor antenna and the outdoor antenna are advised to stay away from each other for more than one floor distance to prevent cyclic signal amplification
If lack of communication quality, please change the installation position of the outdoor antenna and adjustment the indicate direction of antenna
It is best to enclose waterproof tape at the junction, and prevent moisture narrow the indoor signal coverage area
Try to straight the cable, do not bend more than 90 degree
