Working mode: GSM/CDMA/DCS/3G/4G/GPS/BDS/WIFI

Shielding distance: Radius 5-15 meters (according to the strength of the field signal)

Internal battery :8000MA

Working time: 2-8 hours (According to the channel numbers of the device operating modes)

Charger: Car charger or direct charger

External antenna gain: 5dBi (omni antenna)

Transmitting power: 3W

Master size: 130*75*35mm (not including aerial)

Product Weight: 0.8KG

Packing size: 230*170*90mm

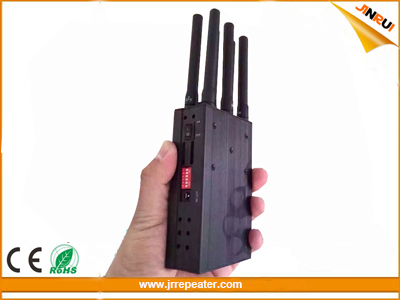

Product instructions (As figure)

1. Anernna:Pls make sure all antennas are installed before using, otherwise might damaged the equipment, and antenna number as belows:

2. Power light: The indicator light will be on when the equipment was working

3. Power switch:  If Power switch off then the devise does not work

4. Charge lamp: The indicator light will bright when the device is charging, and the indicator light will off when the electricity was full)

5. One-way switch: Control the working state if each channel separately

6. Battery charger jack: Charging voltage :12V(Please use our company’s matching charger )

Special notice:

Please make sure all antennas are installed before using;

The device belongs to the power equipment, so the body fever is a normal phenomenon;

To protect device battery and charger, please use product matching charger

Product packing list:

Project              items             units                 Qty

1                Master             pcs                   1

2                Antenna            sets                  1

3             power adapter          pcs                   2

4              specification           pcs                  1

5             safety certificate         pcs                  1

6              warranty card          pcs                  1
