Portable UAV/drone signal jammer blocker
----Technical Parameters-----
Channel
working frequency
Output power(±1dBm)
CH1
2.4G
2400-2485MHz
40 dBm
CH2
GPSL1, Glonass, BDS
1559-1607MHz
GPSL2, Glonass, BDS
1196.5-1251MHz
40 dBm
900M
922-928MHz
43 dBm
CH3
5.8G
5725-5850MHz
36 dBm
Build-in battery
24V,8A ( min 1 hour working continually)
Digital gaussian white noise
jamming radius
0.8-1.2km

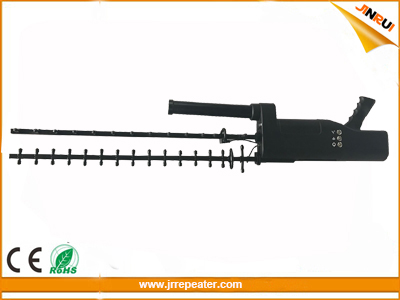

Antennas
3pcs directional antennas
2.4G , 14dBi Yagi Antenna
5.8G , 14dBi Panel Active Antenna
GPS and 900MHz , 14dBi Log Periodic Dipole Antenna
Output Power
54W
Power consumption
180W
Main engine weight
16Kg
Size
551 x 358 x 226 mm
Shell
Pelican IM2500
Humidity
30%-95%
Running temperature
-10℃ to +50℃
The portable UAV/drone jammer is our company's latest product designed by R&D department,
against the widespread use of UAV nowadays.
It disables the targeted UAV by jamming the UAV's remote-control signal and GPS signal, to force the UAV fall or return. The jamming distance reaches more than 1.2KM.
High integration & Stable operation.
when the device turn on/off.
-----Function-----
Effective interference with UAV Remote-Control Signal 2400MHz, GPS signal 1500MHz, GPS signal 1200MHz, Transmission Signal 5800MHz, Signal 900MHz;
-----Features-----
1. Signal Source: Digital gaussian white noise
2. highly effective power & long jamming distance
3. Portable type, its convenient operation.
4.High quality tubular radiator, effective in radiating heat.
5.Import components; the moderating circuit-starting design avoids a spark,
6.Batteries inside, easy to be replaced and maintained.
-----Application-----
Mainly applied to prisons, airports, scientific research centers, detention houses, interrogation rooms, courthouses, labor camp, all kinds of military important places, forbid aerial photography by use of drone, etc

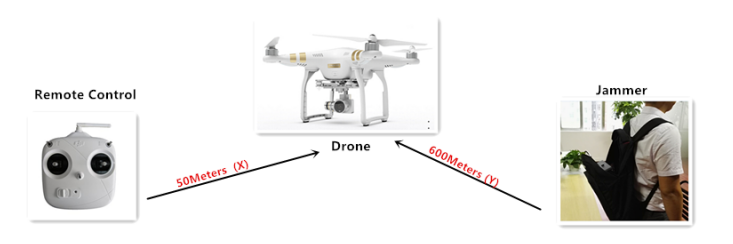

We make field test for Futaba 14sg,
ICR = Y / X = 600 / 50=12
Y is interference distance, X is Communication distance.
When X increase, ICR will be smaller , approach to 1.

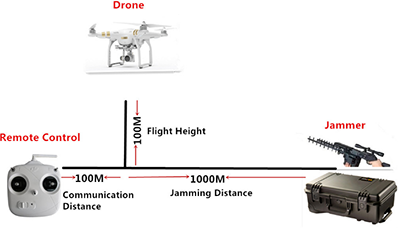

For example,
When X is 100m, Y is 1 KM.
ICR means RF jammer can get effective interference , the maximum ratio of interference distance and Communication distance.
