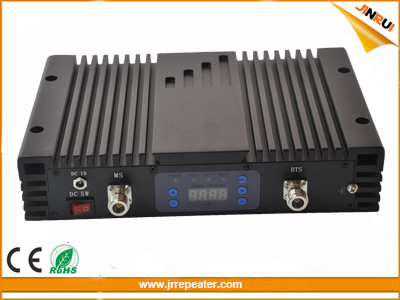

Cellualr singal booster dual band AGC MGC
Frequency can be choosed as below item:
Item No.
Frequency
Item No.
Frequency
JR-23F-CG
850/900MHz
JR-23F-GL
900/2600MHz
JR-23F-GD
900/1800MHz
JR-23F-GL800
900/LTE800MHz
JR-23F-CD
850/1800MHz
JR-23F-DW
1800/2100Mhz
JR-23F-GW
900/2100MHz
JR-23F-WL
2100/2600MHz
JR-23F-CW
850/2100MHz
JR-23F-DL
1800/2600MHz
JR-23F-CP
850/1900MHz
JR-23F-GL700
900/LTE700MHz
JR-23F-ED
EGSM/1800Mhz
JR-23F-EL700
EGSM/LTE700MHz
JR-23F-EW
EGSM/2100MHz
JR-23F-WL800
2100/LTE800MHz
JR-23F-CA
850/AWS1700MHz
JR-23F-L8L26
LTE800/LTE2600Mhz
JR-23F-CL26
850/2600MHz
Max. Gain
70dB
75dB
Max. Output Power
15-20dBm
20-27dBm
Band width
Wide Band
Manual Gain Control
31dB / 1dB Step
Automatic Gain Control
>20dB
Ripple in-band
≦6dB
Return loss
≤ -10dB
Noise Figure
≤ 6dB
Spurious Emission
9KHz~1GHz
≤ -36dBm
1~12.75GHz
≤ -30dBm
WCDMA
Spurious Emission Mask
Meet 3GPP TS 25.143 ( V 6.2.0 )
Modulation Accuracy
≤ 12.5%
Peak Code Domain Error
≤ -35dB@Spreading Factor 256
Time Delay
≤ 1.5 μs
Frequency stability
≤ 0.01ppm
MTBF
> 50000 hours
Impedance
50 ohm
Power Supply
Input AC90~264V,output DC10V / 7A
Power LED
Power Indicator
ALC LED
Orange @ ALC 1~5dB, Red @ ALC 15dB~20dB,
RF Connector
N-Female
Switch
Power Switch、Manual Gain Control Switch
Cooling
Heatsink Convection cooling
Humidity
< 90%
Operating Temperature
-10℃~55℃
Environment Conditions
IP40
Installation Type
Wall Installation
Size
250*360*52mm
Weight
< 6Kg
& Intermodulation
Description：

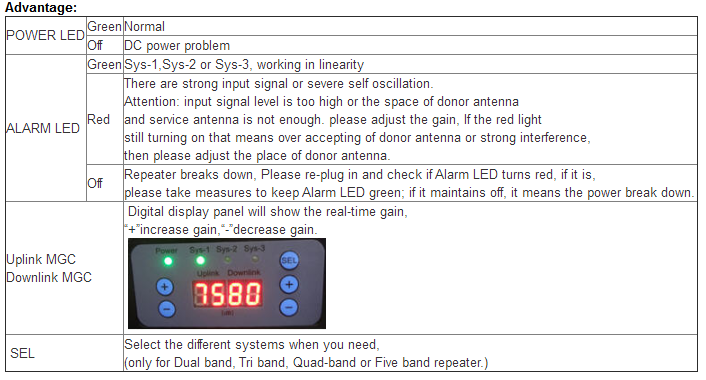

Advantages:
Indoor Signal Repeater (Signal Booster) series is an ideal solution for wireless system in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed inthe building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, it is easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.
The dual band improves mobile signals with no negative impact on human health.
Features：
1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption, easy installation, great cover.
Expansion and extending of the signal of base station.
Optimization of the quality of the signal and source
3. Cover about 3000~6000m2 without block or obstruct.
4. High linear design, ALC function design, low interference to BTS.
5. Support any cellular devices (voice & data & video)
6. Wide band signal booster, or customize selective band booster.
Digital Display Panel, Intelligent mode setting
Smart function called which can be activated via the digital display panel.
Users can choose gain and working system by LED Digital Panel.
Set the technical parameters simple and efficient, this is easier than DIP Switch.
Standard Package:
1) AC90-264V, DC 9V/5A power supply adapter 1PCS
2) AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS
Recommended Accessories:
1)Donor antenna: Log Periodic Antenna (11dBi,806-960/1710-2700MHz)
2)Service antenna: Omni Ceiling Antenna (3dBi,806-960/1710-2700MHz)
3)5D-FB coaxial cable with connecter (Cable length optional)
Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, Shop.etc.
