Tri band singal repeater AGC MGC ALC
Frequency as below model for choose:
|
Model Number |
Frequency |
|
JR-20F-GDW |
900/1800/2100MHz |
|
JR-20F-CDW |
850/1800/2100MHz |
|
JR-23F-EDW |
EGSM/1800/2100MHz |
|
JR-23F-GWL |
900/2100/2600MHz |
|
JR-23F-GDL |
900/1800/2600MHz |
|
JR-23F-EWL |
EGSM/2100/2600MHz |
|
JR-23F-DWL |
1800/2100/2600MHz |
|
JR-23F-CGD |
850/900/1800MHz |
|
JR-23F-CGW |
850/900/2100MHz |
|
JR-23F-CPA |
850/1900/AWS1700MHz |
|
JR-23F-LAL |
LTE700/AWS1700/LTE2600MHz |
|
Max. Gain |
70dB |
75dB |
|
|
Max. Output Power |
15-20dBm |
20-27dBm |
|
|
Band width |
Wide Band |
||
|
Manual Gain Control |
31dB / 1dB Step |
||
|
Automatic Gain Control |
>20dB |
||
|
Ripple in-band |
≦6dB |
||
|
Return loss |
≤ -10dB |
||
|
Noise Figure |
≤ 6dB |
||
|
Spurious Emission |
9KHz~1GHz |
≤ -36dBm |
|
|
|
1~12.75GHz |
≤ -30dBm |
|
|
WCDMA |
Spurious Emission Mask |
Meet 3GPP TS 25.143 ( V 6.2.0 ) |
|
|
|
Modulation Accuracy |
≤ 12.5% |
|
|
|
Peak Code Domain Error |
≤ -35dB@Spreading Factor 256 |
|
|
Time Delay |
≤ 1.5 μs |
||
|
Frequency stability |
≤ 0.01ppm |
||
|
MTBF |
> 50000 hours |
||
|
Impedance |
50 ohm |
||
|
Power Supply |
Input AC90~264V,output DC10V / 7A |
||
|
Power LED |
Power Indicator |
||
|
ALC LED |
Orange @ ALC 1~5dB, Red @ ALC 15dB~20dB, |
||
|
|
|||
|
RF Connector |
N-Female |
||
|
Switch |
Power Switch、Manual Gain Control Switch |
||
|
Cooling |
Heatsink Convection cooling |
||
|
Humidity |
< 90% |
||
|
Operating Temperature |
-10℃~55℃ |
||
|
Environment Conditions |
IP40 |
||
|
Installation Type |
Wall Installation |
||
|
Size |
250*360*52mm |
||
|
Weight |
< 10Kg |
||
Description：

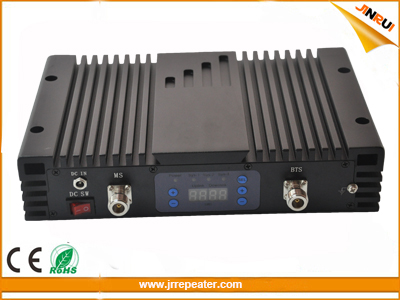

Indoor Signal Repeater (Signal Booster) series is an ideal solution for wireless system in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed inthe building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, it is easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.
The dual band improves mobile signals with no negative impact on human health.
Features：
1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption, easy installation, great cover.
Expansion and extending of the signal of base station.
Optimization of the quality of the signal and source
3. Cover about 3000~6000m2 without block or obstruct.
4. High linear design, ALC function design, low interference to BTS.
5. Support any cellular devices (voice & data & video)
6. Wide band signal booster, or customize selective band booster.
Advantages:

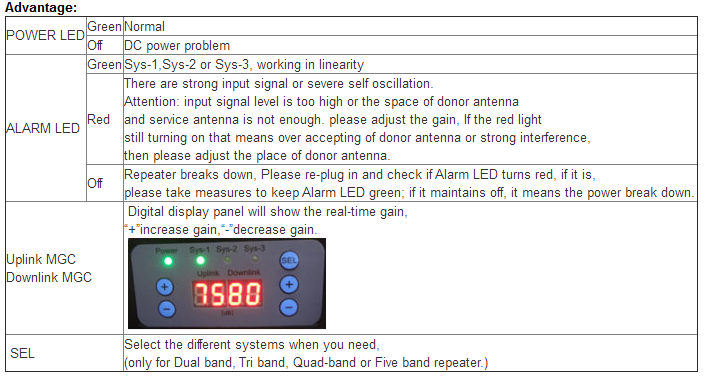

Digital Display Panel, Intelligent mode setting
Smart function called which can be activated via the digital display panel.
Users can choose gain and working system by LED Digital Panel.
Set the technical parameters simple and efficient, this is easier than DIP Switch.
Standard Package:
1) AC90-264V, DC 9V/5A power supply adapter 1PCS
2) AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS
Recommended Accessories:
1)Donor antenna: Log Periodic Antenna (11dBi,806-960/1710-2700MHz)
2)Service antenna: Omni Ceiling Antenna (3dBi,806-960/1710-2700MHz)
3)5D-FB coaxial cable with connecter (Cable length optional)
Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, Shop.etc.
